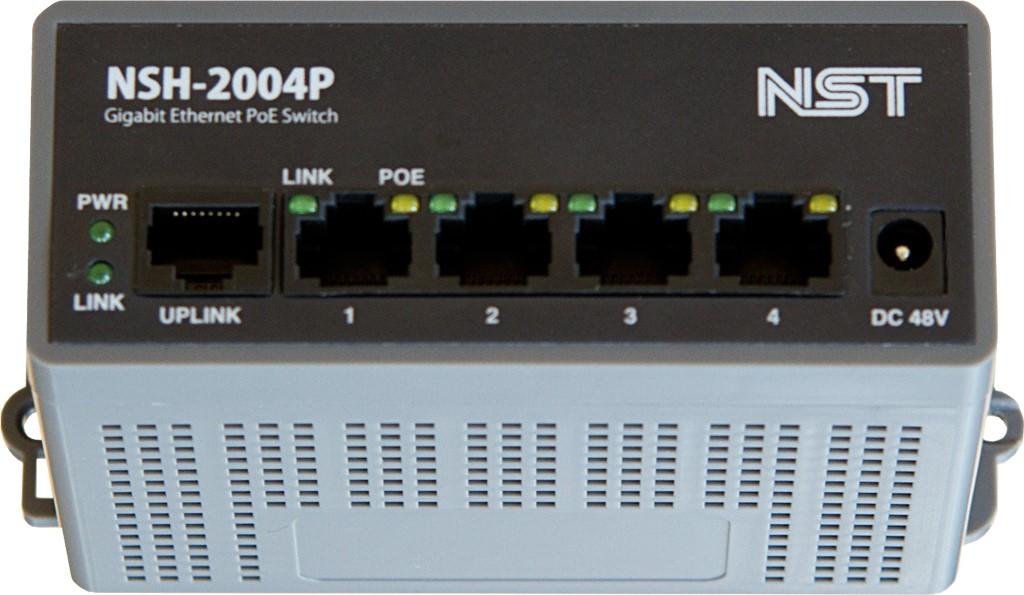

Switch 5 cổng 10/100/1000Base-T ( 4 cổng POE+1 cổng Uplink)
Unmanaged, 4-ports 10/100/1000Base-T PoE(802.3af/at), 1-port 10/100/1000Base-T Uplink,
• RJ-45 Pin out : 4/5(+) 7/8(-)
• Output Voltage : 48VDC
• PoE User Port Power : 15.4W / 25.5W
Nguồn điện sử dụng: AC 95~265V, 50~60Hz - DC 48V 0.5A comes with an adpater 48VDC ( kèm adapter 48DC)
Nhiệt độ làm việc: 0°C ~ 70°C
Kích thước: 45 x 126.5 x 86 (H x W x D(mm))
==> Click tải Catalog NSH-2004P
Specifications
| item | Descriptions |
|---|---|
| Interface | 4-Port 10/100/1000Base-T PoE 1-Port 10/100/1000Base-T Uplink |
| Features - PoE | IEEE 802.3af/at Standard PD Classification Pre-Standard PD (Power Device) Detection Single DC voltage input (44V ~ 57V) Over Current Protection Low Power Dissipation (Sense 저항 0.36Ω ) Wide Temperature range (-10℃ ~ 85℃) On-chip Thermal protection Dynamic Power Management / Emergency Power Management mechanism Auto Restart Fault Management |
| Features | IEEE 802.3x Flow Control Auto MDI/MDIX IGMP Snooping Powerful internal constant power circuit enables stable operation even with unstable power input High pressure ceramic treatment for each port improves surge and EMI characteristics |
| Power | DC 48V 0.5A (외장) |
| Size | 126(W) x 86(H) x 44(D) mm |
