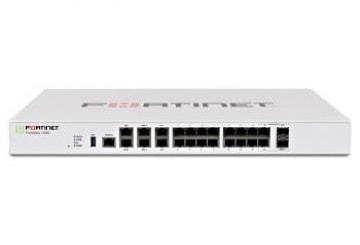

FortiGate FG-100F-BDL-950-12
- 22 x GE RJ45 ports (including 2 x WAN ports, 1 x DMZ port, 1 x Mgmt port, 2 x HA ports, 16 x switch ports with 4 SFP port shared media), 4 SFP ports, 2x 10G SFP+ FortiLinks, dual power supplies redundancy. Max managed FortiAPs (Total / Tunnel) 128 / 64
- Hardware plus 24×7 FortiCare and FortiGuard Unified (UTM) Protection
Là thế hệ tường lửa (Firewall) tiếp theo của Hãng Fortinet. Thiết bị tường lửa Fortigate 100F bảo vệ chống lại các mối đe dọa trên mạng với bộ xử lý bảo mật công suất cao cho hiệu suất mạng được tối ưu hóa, dễ dàng triển khai giải pháp. Phù hợp với doanh nghiệp vừa và lớn hoặc văn phòng chi nhánh.
| Thông số kỹ thuật | |
| GE RJ45 Ports | 12 |
| GE RJ45 Management/HA /DMZ Ports | 1 / 2 / 1 |
| GE SFP Slots | 4 |
| 10 GE SFP+ Slots | 2 |
| GE RJ45 WAN Ports | 2 |
| GE RJ45 or SFP Shared Ports | 4 |
| USB Port | 1 |
| Console Port | 1 |
| Internal Storage | – |
| Included Transceivers | 0 |
| System Performance — Enterprise Traffic Mix | |
| IPS Throughput 2 | 2.6 Gbps |
| NGFW Throughput 2, 4 | 1.6 Gbps |
| Threat Protection Throughput 2, 5 | 1 Gbps |
| System Performance | |
| Firewall Throughput (1518 / 512 / 64 byte UDP packets) | 20 / 18 / 10 Gbps |
| Firewall Latency (64 byte UDP packets) | 5 μs |
| Firewall Throughput (Packets Per Second) | 15 Mpps |
| Concurrent Sessions (TCP) | 1.5 Million |
| New Sessions/Second (TCP) | 56,000 |
| Firewall Policies | 10,000 |
| IPsec VPN Throughput (512 byte) 1 | 11.5 Gbps |
| Gateway-to-Gateway IPsec VPN Tunnels | 2,500 |
| Client-to-Gateway IPsec VPN Tunnels | 16,000 |
| SSL-VPN Throughput | 750 Mbps |
| Concurrent SSL-VPN Users (Recommended Maximum, Tunnel Mode) | 500 |
| SSL Inspection Throughput (IPS, avg. HTTPS) 3 | 1 Gbps |
| SSL Inspection CPS (IPS, avg. HTTPS) 3 | 1,800 |
| SSL Inspection Concurrent Session (IPS, avg. HTTPS) 3 | 135,000 |
| Application Control Throughput (HTTP 64K) 2 | 2.2 Gbps |
| CAPWAP Throughput (1444 byte, UDP) | 15 Gbps |
| Virtual Domains (Default / Maximum) | 10 / 10 |
| Maximum Number of Switches Supported | 24 |
| Maximum Number of FortiAPs (Total / Tunnel Mode) | 128 / 64 |
| Maximum Number of FortiTokens | 5,000 |
| Maximum Number of Registered FortiClients | 600 |
| High Availability Configurations | Active / Active, Active / Passive, Clustering |
| Dimensions | |
| Height x Width x Length (inches) | 1.73 x 17 x 10 |
| Height x Width x Length (mm) | 44 x 432 x 254 |
| Form Factor | Rack Mount, 1 RU |
| Weight | 7.25 lbs (3.29 kg) |
| Environment | |
| Power Required | 100–240V AC, 60–50 Hz |
| Maximum Current | 100V / 1A, 240V / 0.5A |
| Power Consumption (Average / Maximum) | 35.1 W / 38.7 W |
| Heat Dissipation | 119.77 BTU/h |
| Operating Temperature | 32–104°F (0–40°C) |
| Storage Temperature | -31–158°F (-35–70°C) |
| Operating Altitude | Up to 7,400 ft (2,250 m) |
| Humidity | 10–90% non-condensing |
| Noise Level | 40.4 dBA |
| Compliance | FCC Part 15B, Class A, CE, RCM, VCCI, UL/cUL, CB, BSMI |
| Certifications | ICSA Labs: Firewall, IPsec, IPS, Antivirus, SSL-VPN; IPv6 |
