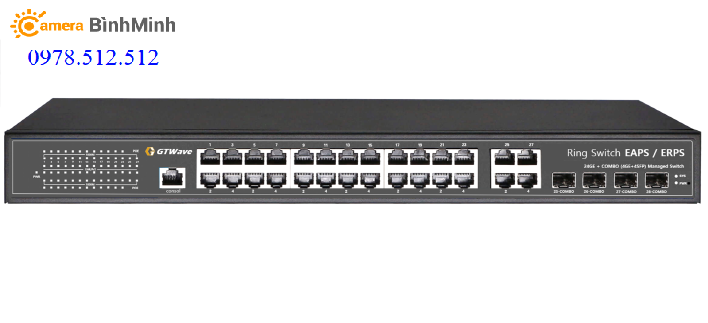

Switch L2 Gigabit 28 Cổng GTwave Korea NS24-4GSC-MER

Switch L2 Gigabit 28 Cổng GTwave Korea NS24-4GSC-MER

  • NH00621

Model: NS24-4GSC-MER

Thương hiệu:GTWAVE

Xuất xứ: GTWAVE Korea

Phân phối: Bình Minh CCTV

Bảo hành: 12 thán

Thêm vào giỏ hàng 0989 480924 - 0978 512 512

THÔNG SỐ CƠ BẢN SWITCH L2 NS24-4GSC-MER

Model

NS24-4GSC-MER

Product

Full Gigabit 4SFP+28GE L2+ Managed Switch

Fixed Port

24*10/100/1000Base-TX RJ45 port (Data)

4*COMBO

Console port

1*console port

Reset Key

1

Network Protocol

IEEE 802.3

IEEE 802.3u 100BASE-TX IEEE 802.3ab1000BASE-T IEEE 802.3x

IEEE 802.3z 1000BASE-X IEEE 802.3ad

IEEE 802.3q 、IEEE 802.3q/p

IEEE 802.1w、IEEE 802.1d 、IEEE 802.1S

STP(Spanning Tree Protocol)

RSTP/MSTP( Rapid Spanning Tree Protocol) EPPS ring network protocol

EAPS ring network protocol

Bandwidth

56/128Gbps

Packet Forwarding

41.67Mpps

MAC Address

8K

Buffer

4.1M

Transmission Distance

10BASE-T : Cat3,4,5 UTP(≤250 meter)

100BASE-TX : Cat5 or later UTP(≤100 meter) 1000BASE-TX : Cat6 or later UTP(≤1000 meter) 1000BASE-SX:62.5μm/50μm MMF(2m~550m)

1000BASE-LX:62.5μm/50μm MM(2m~550m) or 10μm SMF(2m~5000m)

FLASH

128M

RAM

128M

CPU

500MHz

DDR

1G DDR3

LED Indicator

PWR:Power LED SYS:(System LED)

1~28:(Link LED=10/100M Link、1000M=Gigabit Link)

Power

Built-in power AC:100-240Vac 50-60Hz 0.4A  max 30W

Operating Temperature/Humidity

-10~+55°C;5%~90% RH Non coagulation

Storage Temperature/Humidity

-40~+75°C;5%~95% RH Non coagulation

Product size/ package size

(L*W*H)

440mm*200mm*45mm 515mm*300mm*95mm

N.W/G.W(kg)

2.2kg/2.9kg

Installation

Rack-mount(optional machine hanger spare parts)



Lightning protection

/ protection level

6KV 8/20us; IP30

Certificate

3C;CE-EMC EN55032;CE-LVD EN62368;

FCC Part 15 Class B;RoHS;

Warranty

Whole device for 1 year(Accessories not included)



Network Protocol

IEEE 802.3x

IEEE 802.3、IEEE 802.3u、IEEE 802.3ab、IEEE 802.3z IEEE 802.3ad

IEEE 802.3q、IEEE 802.3q/p

IEEE 802.1w、IEEE 802.1d、IEEE 802.1S、IEEE 802.1X

MAC

Support 16K MAC address,auto aging and learning

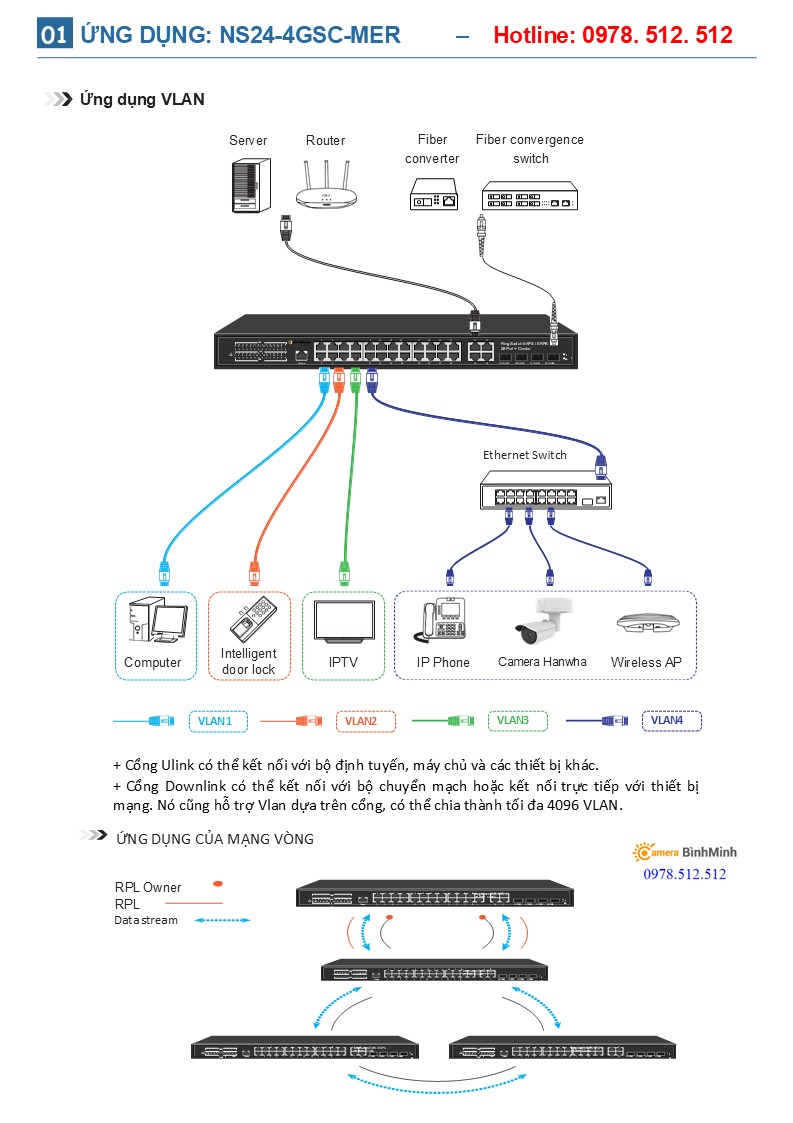

VLAN Configuration

Support port-based VLAN Up to 4096 VLANs

Support Voice VLAN, can configure Qos for voice data 802.1Q

Spanning Tree

STP(Spanning tree protocol) RSTP(Rapid spanning tree protocol) MSTP(Rapid spanning tree protocol) EPPS(Ring network protocol) EAPS(Ring network protocol) 802.1x

Port Aggregation

Support 8 groups of aggregation, each group support up to 8 ports

Port Mirroring

Support many-to-one port mirroring

Loop Guard

Support loop protection, real-time detection, quick alram, concise location, Intelligent blocking, automatic recovery

Port Isolation

Support downlink ports isolate from each other and communicate with uplink port as well

Flow Control

Half duplex based on Back pressure; Full duplex based on PAUSE frame

Speed Limitation

Bandwidth management based on port input and output

Multicast Control

IGMPv1/2/3 and MLDv1/2 Snooping GMRP protocol registration

Multicast address management, multicast VLAN, multicast routing port, static multicast address

DHCP

DHCP Snooping

Storm Suppression

Support unknown unicast, multicast , unknown multicast, broadcast type storm suppression;

Storm suppression based on bandwidth adjustment and storm filtering

Security

Support User port+IP address+MAC address ACL based on IP, MAC

Support security properties of number of MAC address based on port
