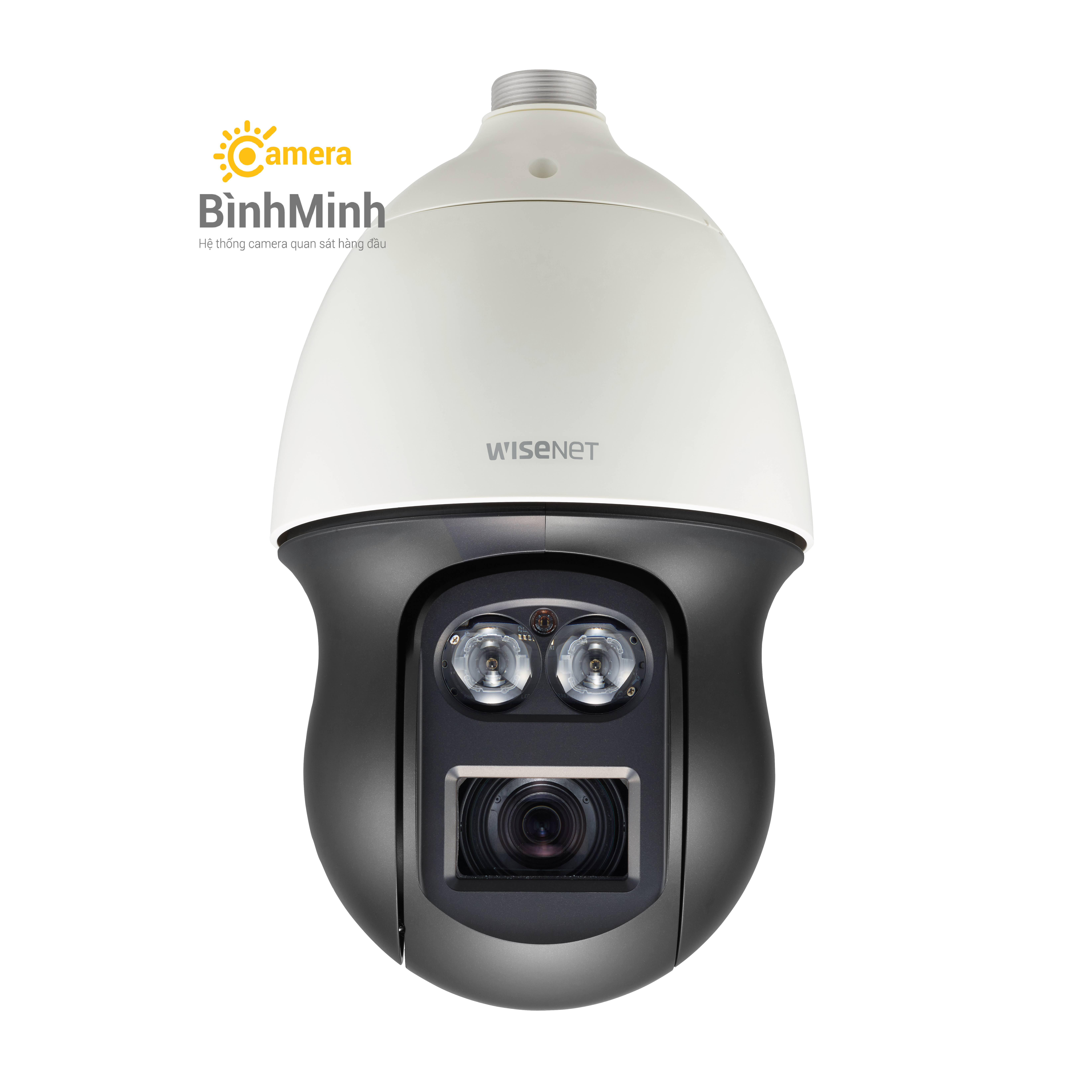

Camera Ip 23X 2M Quay Quet Hanwha QNP-6230RH

Camera Ip 23X 2M Quay Quet Hanwha QNP-6230RH

Hãng sản xuất: Hanwhatechwin Korea

Nhà Phân phối: Bình Minh CCTV

Thời gian bảo hành: 12 tháng

Phân loại sản phẩm: Camera Ip- PTZ

Camera PTZ IP 23x Ngoài trời WiseNetⅢPlus 2M
- Độ phân giải 2 M (1920 x 1080)
- Ống kính: zoom quang học 23x (4.4 ~ 101.2mm), zoom kỹ thuật số 16x
- Bộ giải mã kép H.265 H.264, MJPEG
- Theo dõi tự động, phân tích video thông minh
- Độ nhạy sáng: 0.1 Lux ( Color), 0 Lux (B/W) ( IR Led bật)
- Ngày và đêm (ICR), WDR (120dB)
- Hỗ trợ thẻ nhớ trong SD/SDHC/SDXC lên đến 128G
- Tiêu chuẩn ngoài trời: IP66

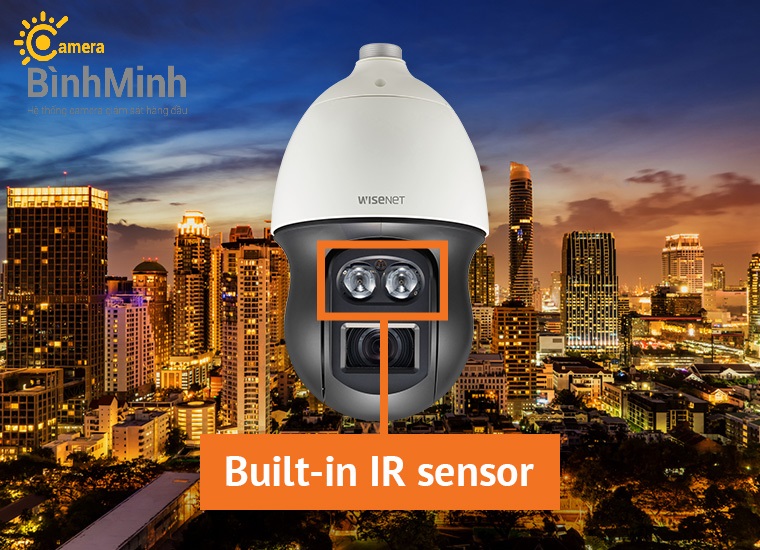

- Hồng Ngoại: 100m
- Chống va đập : IK10
- Nguồn cấp : 24VAC, HPoE(IEEE802.3bt, Class7)

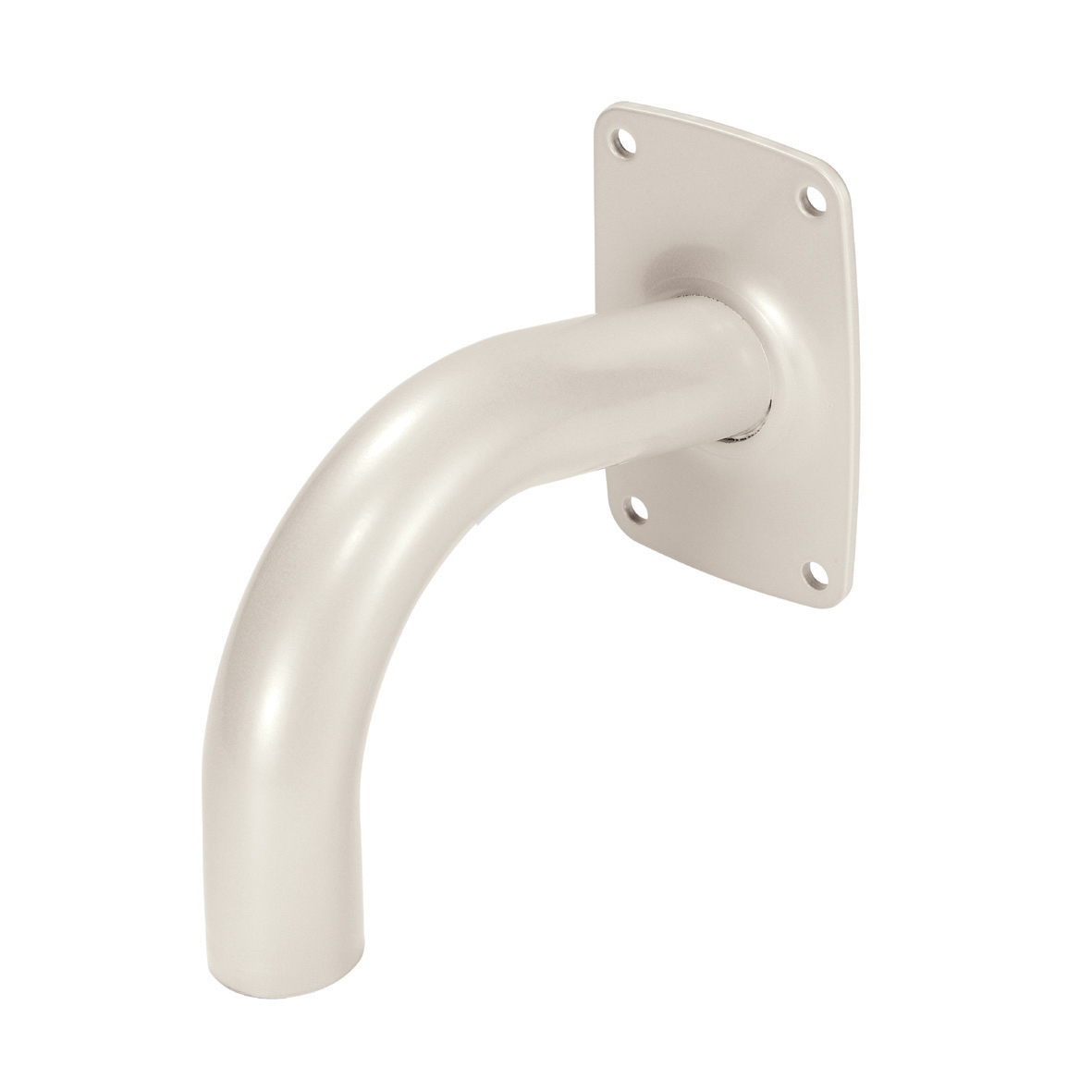

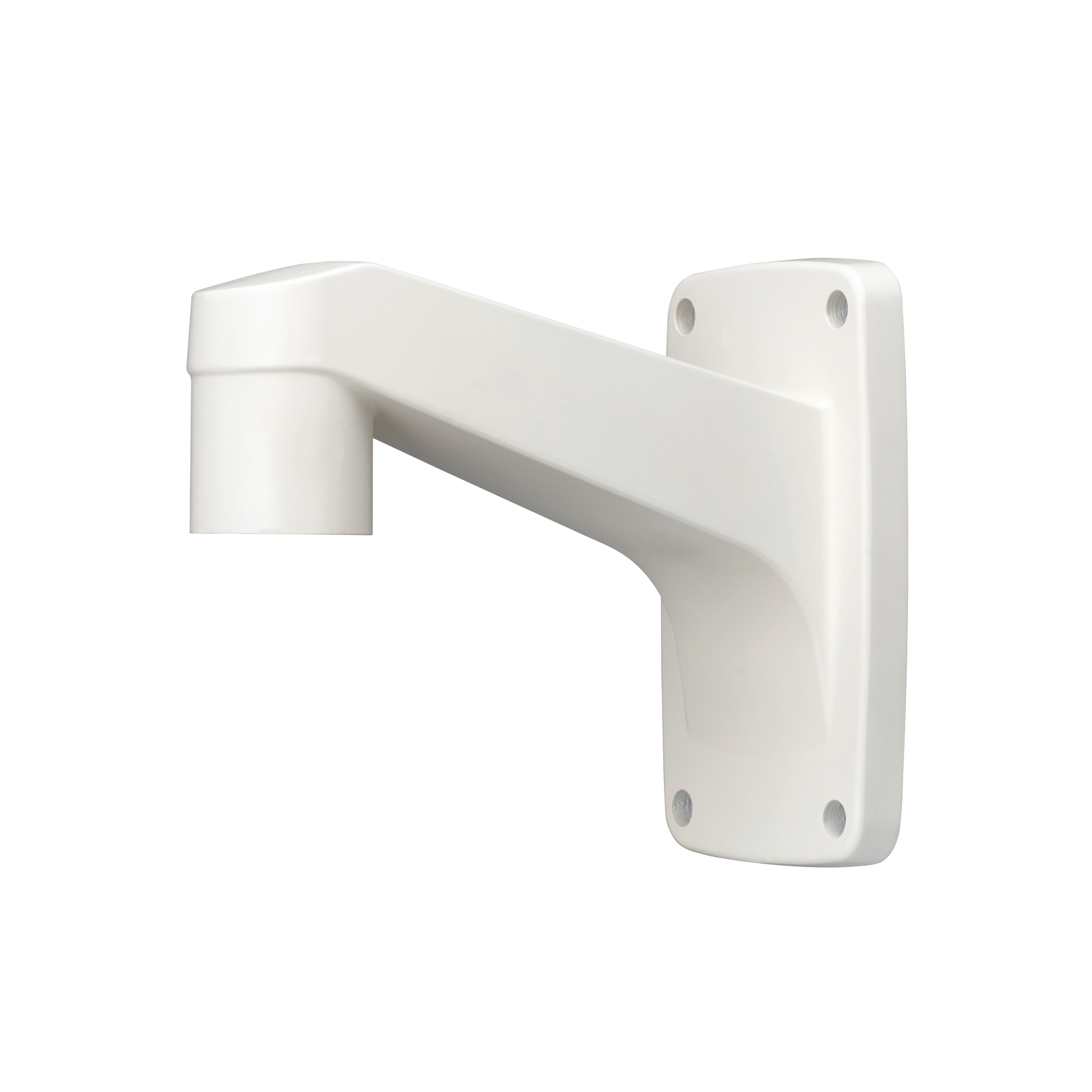

  • Tùy chọn chân đế kèm theo, chân đế cong SBP-300WM, chân đế vuông SBP-300WM1





CHI TIẾT SẢN PHẨM

Imaging Device1/2.8" 2MP CMOS
Effective Pixels1944(H)x1212(V)
Min. IlluminationColor: 0.05Lux(F1.6, 1/30sec)
BW: 0Lux(IR LED On)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)4.44~102.2mm(23x) zoom
Max. Aperture RatioF1.6(Wide)~F3.6(Tele)
Angular Field of ViewH: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele)
Min. Object DistanceWide: 1.5m(4.92ft), Tele: 2m(6.56ft)
Focus ControlOneshot AF
Lens TypeDC auto iris
Pan / Tilt / Rotate
Pan Range360˚ Endless
Pan SpeedPreset: 400˚/sec, Manual: 0.024˚/sec~250˚/sec
Tilt Range95˚(-5˚~90˚)
Tilt SpeedPreset: 250˚/sec, Manual: 0.024˚/sec~250˚/sec
SequencePreset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule
Preset Accuracy±0.2˚
AzimuthSupport
Operational
IR Viewable Length100m(328.08ft)
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, HLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNRⅤ
Digital Image StabilizationSupport(built-in gyro sensor)
DefogSupport
Motion Detection8ea, 8point polygonal zones
Privacy Masking24ea, rectangular Support
- Color: Grey/Green/Red/Blue/Black/White
- Mosaic
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (2~1/12,000sec)
Video RotationFlip, Mirror
AnalyticsDirectional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Serial InterfaceRS-485(Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell)
Alarm I/OInput 4ea / Output 2ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
PTZ Preset
Audio InSelectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio OutLine out, Max.output level: 1Vrms
Network
EthernetRJ-45(10/100BASE-T), SFP(Optional)
Video CompressionH.265/H.264,MJPEG
Resolution1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz)
Smart CodecManual(5ea area), WiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(10 users) / Multicast
Multiple streaming(Up to 10 profiles)
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour,LLDP, SRTP
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 1slot 256GB
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory1024MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity24VAC : -50°C~+55°C (-58°F ~ +131°F) / Less than 90% RH
HPoE : -40°C~+55°C (-40°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -35°C
Storage Temperature / Humidity-50°C~+60°C (-58°F~+140°F) / Less than 90% RH
CertificationIP66, IK10
Electrical
Input Voltage24VAC, HPoE(IEEE802.3bt, Class7)
Power Consumption24VAC: Max. 83W (typical : 30W)
HPoE : Max. 51W (typical : 30W)
Mechanical
Color / MaterialBody: Ivory / Plastic, Head: Black / Plastic
Product dimensions / weightØ236.9x407.7mm(9.33x16.05"), 6.8Kg(14.99 lb)
