Camera nhỏ gọn chất lượng

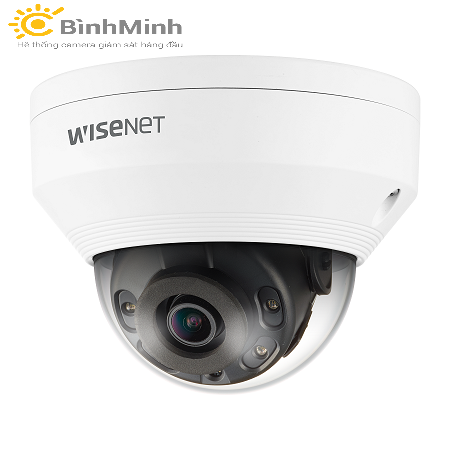

Dòng sản phẩm camera với giá thành phải chăng mang tới chất lượng chuyên nghiệp, phù hợp với ứng dụng giám sát vừa và nhỏ. Các Camera dòng Q rất đa dạng phù hợp với mọi khu vực cần giám sát, giúp tiết kiệm chi phí lắp đặt và thời gian. Đặc biệt sản phẩm Camera Ip hồng ngoại ốp trần Wisenet Hanwha QNV-6012R với IP66, IK10 có thể lắp ngoài trời và chống va chạm nhẹ.
Thông số chi tiết:
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8" 2MP CMOS | |
| Effective Pixels | 1920(H)x1080(V) | |
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) | |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 4.0mm fixed focal | |
| Max. Aperture Ratio | F1.6 | |
| Angular Field of View | H: 87.6 / V: 46.4° / D: 104.5° | |
| Focus Control | Fixed | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ | |
| Operational | ||
| IR Viewable Length | 25m(82.02ft) | |
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | 4ea, polygonal zones | |
| Privacy Masking | 6ea, rectangular zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output | |
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only) | |
| Memory | 512MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C | |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH | |
| Certification | IP66, IK10 | |
| Electrical | ||
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE: Max 7.40W, typical 6.00W 12VDC: Max 6.40W, typical 5.10W | |
| Mechanical | ||
| Color / Material | White / Aluminum | |
| RAL Code | RAL9003 | |
| Product dimensions / weight | Ø120.3x91.7mm(Ø4.74x3.61"), 510g(1.12 lb) | |
| DORI | ||
| Detect (25PPM/ 8PPF) | 40.0m(131.36ft) | |
| Observe (63PPM/ 19PPF) | 16.0m(52.54ft) | |
| Recognize (125PPM/ 38PPF) | 8.0m(26.27ft) | |
| Identify (250PPM/ 76PPF) | 4.0m(13.14ft) | |
