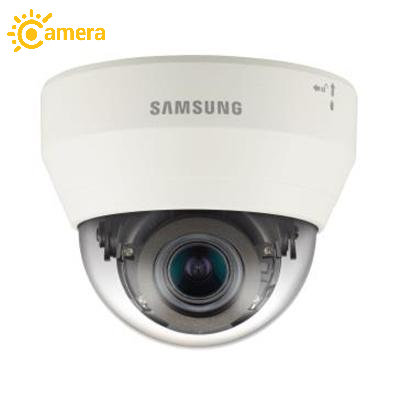

Camera bán cầu hồng ngoại Hanwha QND-6070RP lắp trong nhà
+ Độ phân giải 2Megapixel (1920 x 1080)
+ Ống kính: 2.8 ∼ 12mm (4.3x)
+ Chuẩn nén hình ảnh: H.265, H.264, MJPEG
+ Quan sát Ngày & Đêm (ICR), SSDR, SSNR
+ Phát hiện chuyển động / cảnh báo
+ Tầm quan sát hồng ngoại: 20m
+ Khe cắm thẻ SD/SDHC (tối đa 128GB)
+ Kích thước: Ø119.8 x 98.8mm
+ Nguồn cấp: 12V DC, PoE
THÔNG SỐ CHI TIẾT:
| Imaging Device | 1/2.9" 2MP CMOS | |
| Effective Pixels | 1984(H)x1105(V) | |
| Min. Illumination | Color: 0.095Lux(F1.4, 1/30sec) BW: 0Lux(IR LED on) | |
| Lens | ||
|---|---|---|
| Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) manual varifocal | |
| Max. Aperture Ratio | F1.4(Wide) | |
| Angular Field of View | H: 103.8(Wide)~32.4˚(Tele) / V: 53.7(Wide)~18.4˚(Tele) / D: 121.9(Wide)~37.1˚(Tele) | |
| Focus Control | Manual | |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~67˚ / 0˚~355˚ | |
| Operational | ||
| IR Viewable Length | 20m(65.62ft) | |
| Camera Title | Displayed up to 20 characters per line(Max.5 lines) | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | 4ea, polygonal zones | |
| Privacy Masking | 6ea, rectangular zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Defocus detection, Motion detection, Tampering | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output | |
| Audio In | Built-in mic | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264, MJPEG | |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 720x576, 720x480, 640x480, 320x240 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps/12fps(60Hz/50Hz) | |
| Smart Codec | WiseStreamⅠ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR | |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB | |
| Application Programming Interface | ONVIF Profile S/G SUNAPI(HTTP API) | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12 Recommended Browser: Google Chrome Supported Browser: MS Explorer11, MS Edge, Mozilla Firefox(Windows 64bit only), Apple Safari(Mac OS X only) | |
| Memory | 256MB RAM, 256MB Flash | |
| Environmental | ||
| Operating Temperature / Humidity | -10°C ~ +55°C(14°F ~ +131°F) / Less than 90% RH | |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH | |
| Electrical | ||
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE: Max 6.70W 12VDC: Max 5.50W | |
| Mechanical | ||
| Color / Material | Ivory / Plastic | |
| Product dimensions / weight | Ø119.8x98.8mm(Ø4.72x3.89"), 325g(0.72 lb) | |
- • Design and specifications are subject to change without notice.
• Wisenet is the proprietary brand of Hanwha Techwin.
