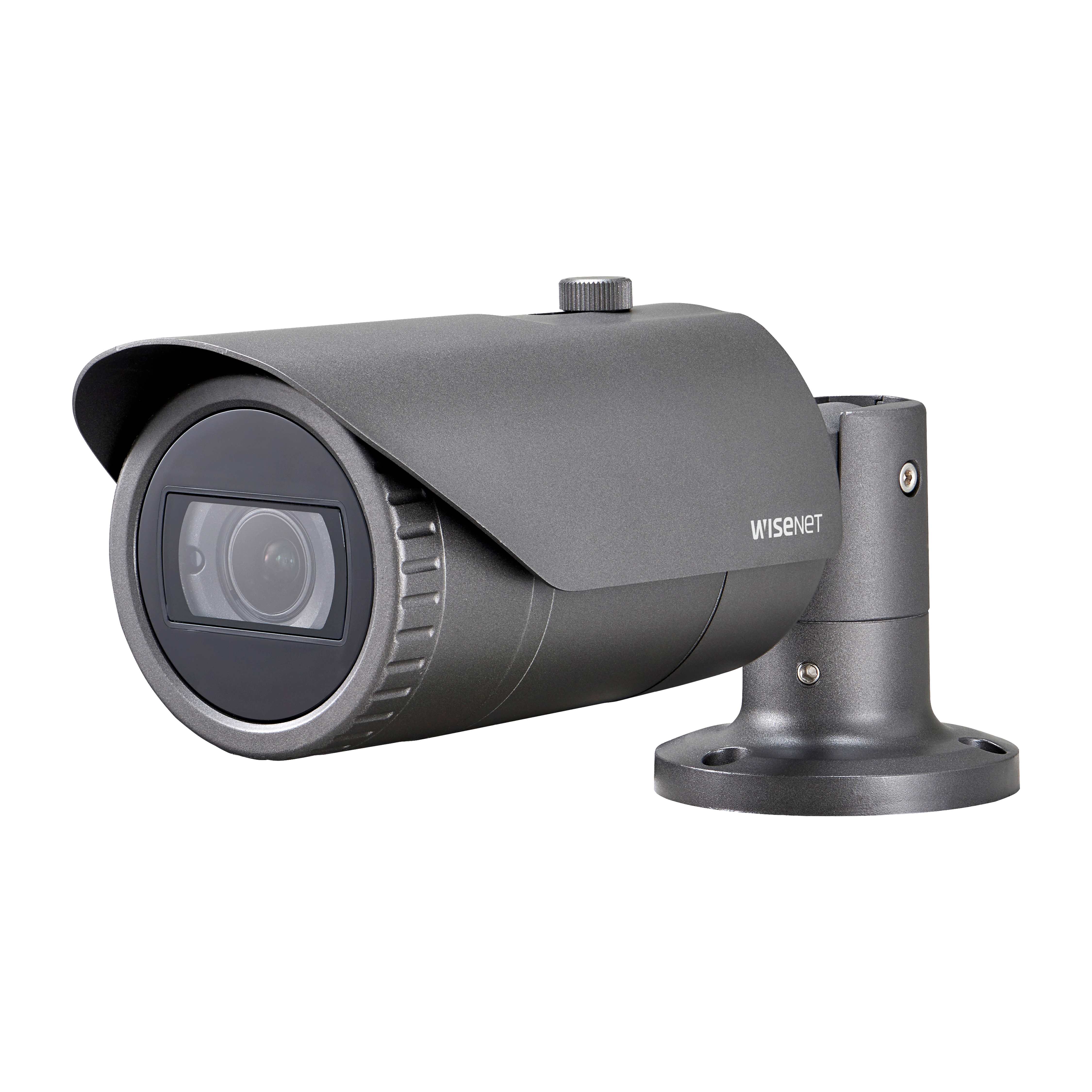

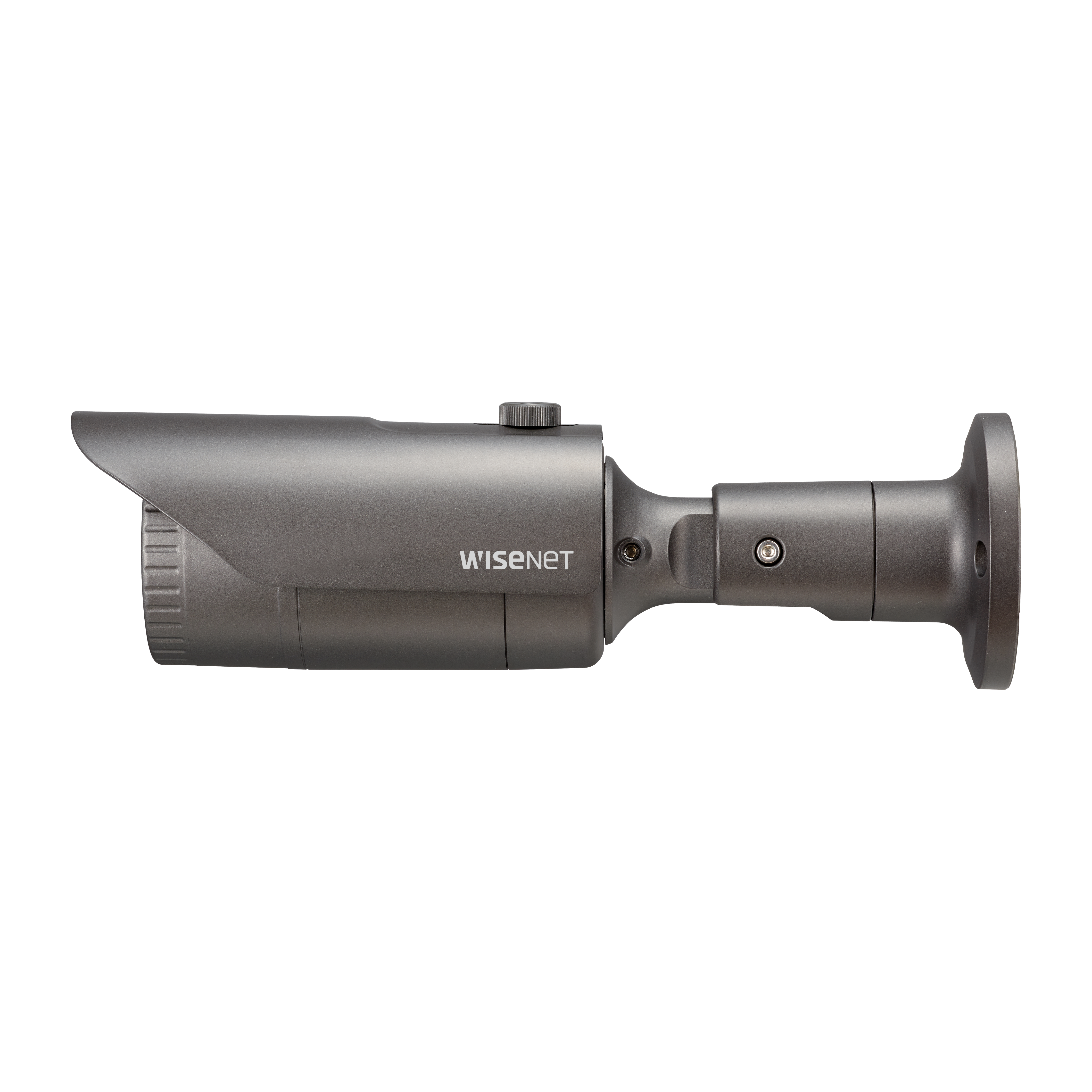

Camera Wisenet Hanwha QNO-6012R/VAP

Camera Wisenet Hanwha QNO-6012R/VAP

  • NH00161

Thương hiệu: Wisenet

Hãng sản xuất: HanwhaTechwin

Nhà Phân phối: Bình Minh CCTV

Thời gian bảo hành:24 tháng

Phân loại sản phẩm: Camera IP Thân Trụ

THÔNG SỐ CỞ BẢN CẨM WISENET: QNO-6012R/VAP

+ Camera Ip thân hồng ngoại 2M Wisenet Hanwha QNO-6012R/VAP

+ Độ phân giải 2Megapixel (1920x1080P)

+ Cảm biến hình ảnh:1/ 2.8’’ 2MP CMOS

+ Độ nhậy sáng có mầu 0.1lux (F2.0 1/30 giây), BW 0lux (hồng ngoại bật).

+ Chuẩn nén Video H.265, H.264, Max 30 khung hình/ giây, MJPEC 15 khung hình / giây 60Hz/50Hz

+ Video out BNC 1.0 VP.P /75 Ω 720x480 (N), 720x576 (P)

+ Audio thông minh của Samsung có nhiều lựa chọn G.711 u-law /G.726, G.726 (ADPCM) 8KHz, G.711 8KHz, G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps

+ Ống kính cố định 2.8mm tỷ lệ khẩu độ F2.0

+ Góc nhìn ống kính: H: 113,7 / V: 61,5 ° / D: 134,5 °

+ Hồng ngoại ban đêm 20-30M

+ Tự động chuyển chế độ ngày đềm.

+ Công nghệ WiseStream II thông minh.

+ Công nghệ truyền dẫn nhiều luồng.

+ Hỗ trợ khe cắm thẻ nhớ Micro SD / SDHC / SDXC 1slot 128GB

+ Bố nhớ Ram xử lý Ram 512, Flash 256MB

+ Nguồn điện POE, 12DC

THÔNG SỐ CHI TIẾT

Video
Imaging Device1/2.8" 2MP CMOS
Effective Pixels1920(H)x1080(V)
Min. IlluminationColor: 0.03Lux(F2.0, 1/30sec)
BW: 0Lux(IR LED on)
Video OutCVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation
Lens
Focal Length (Zoom Ratio)2.8mm fixed focal
Max. Aperture RatioF2.0
Angular Field of ViewH: 113.7 / V: 61.5° / D: 134.5°
Focus ControlFixed
Operational
IR Viewable Length20m(65.62ft)
Camera TitleDisplayed up to 85 characters
Day & NightAuto(ICR)
Backlight CompensationBLC, WDR, SSDR
Wide Dynamic Range120dB
Digital Noise ReductionSSNR
Motion Detection4ea, polygonal zones
Privacy Masking6ea, rectangular zones
Gain ControlLow / Middle / High
White BalanceATW / AWC / Manual / Indoor / Outdoor
LDCSupport
Electronic Shutter SpeedMinimum / Maximum / Anti flicker (1/5~1/12,000sec)
Video RotationFlip, Mirror, Hallway view(90˚/270˚)
AnalyticsDefocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
Alarm I/OInput 1ea / Output 1ea
Alarm TriggersAnalytics, Network disconnect, Alarm input
Alarm EventsFile upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at event triggers
Alarm output
Audio InSelectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Network
EthernetRJ-45(10/100BASE-T)
Video CompressionH.265/H.264: Main/High, MJPEG
Resolution1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360
Max. FramerateH.265/H.264: Max. 30fps/25fps(60Hz/50Hz)
MJPEG: Max. 15fps/12fps(60Hz/50Hz)
Smart CodecWiseStreamⅡ
Bitrate ControlH.264/H.265: CBR or VBR
MJPEG: VBR
StreamingUnicast(6 users) / Multicast
Multiple streaming(Up to 3 profiles)
Audio CompressionG.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
ProtocolIPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP
SecurityHTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Edge StorageMicro SD/SDHC/SDXC 1slot 128GB
Application Programming InterfaceONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform
Web ViewerSupported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14
Recommended Browser: Google Chrome
Supported Browser: MS Explore11, MS Edge, Mozilla Firefox(Window 64bit only), Apple Safari(Mac OS X only)
Memory512MB RAM, 256MB Flash
Environmental
Operating Temperature / Humidity-30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH
* Start up should be done at above -20°C
Storage Temperature / Humidity-30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH
CertificationIP66, IK10
Electrical
Input VoltagePoE(IEEE802.3af, Class3), 12VDC
Power ConsumptionPoE: Max 7.00W, typical 5.20W
12VDC: Max 6.10W, typical 4.50W
Mechanical
Color / MaterialDark grey / Aluminum
Product dimensions / weightØ70.0x246.0mm(Ø2.76x9.69"), 700g(1.54 Ib)
DORI
Detect (25PPM/ 8PPF)25.1m(82.21ft)
Observe (63PPM/ 19PPF)10.0m(32.89ft)
Recognize (125PPM/ 38PPF)5.0m(16.44ft)
Identify (250PPM/ 76PPF)2.5m(8.22ft)

=> ĐIỂM KHÁC NHAU CỦA 4 CAMERA THÂN WISENET:

     - QNO-6012R ống kính 2.8 mm

     - QNO-6022R ống kính 4 mm

     - QNO-6032R ống kính 6 mm

     - QNO-6072R ống kính điều chỉnh 3.2~10mm ( Chỉnh tay - varifocal lens )

     - QNO-6082R  ống kính điều chỉnh 3.2~10mm ( Chỉnh bằng phần mềm - motorized varifocal lens )
